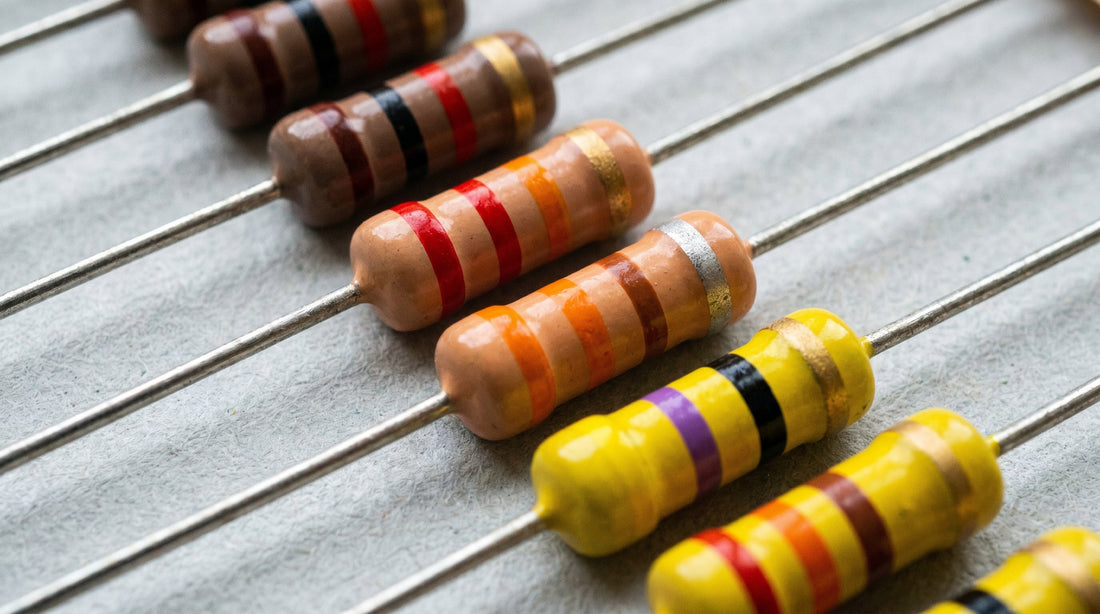

How to Read Resistor Color Codes: The Ultimate Guide for Beginners
If you have ever looked at a circuit board and wondered what those tiny striped components are, you are not alone. Resistors are one of the most common electronic parts in the world. But instead of printing numbers on them, manufacturers paint colorful rings around them.
Learning how to read resistor color codes might seem confusing at first, but once you understand the system, you can identify any resistor in seconds. In this guide, we will show you exactly how to find a resistor's value, how to read 4-band and 5-band resistors, and a simple trick to remember the colors forever.
What is the Resistor Color Code?
The resistor color code is an international standard used to indicate the resistance value (in ohms) and the tolerance (accuracy) of a resistor.
Because axial resistors are incredibly small, printing tiny numbers on them would make them almost impossible to read—especially once they are soldered into a tight circuit board. Instead, colored bands are painted around the body of the resistor. By looking at these colors in the correct order, you can calculate the exact specifications of the component.
How to Find the Reading Direction
Before you calculate the value, you need to know which way to hold the resistor. If you read it backwards, you will get the completely wrong number!
Here is how to figure out the reading direction:
- Look for the gap: There is usually a slightly larger gap between the multiplier band and the tolerance band. Put that gap on your right side.
- Look for Gold or Silver: The last band is almost always the tolerance band, which is usually Gold or Silver. If you see a Gold or Silver band, put it on your far right. You will read from left to right, starting with the band closest to the end.
How to Calculate 4-Band Resistor Color Code
The 4-band resistor is the most common type you will find in hobbyist kits and basic electronics. Here is what each band means:
- Band 1 (First Digit): Represents the first number.
- Band 2 (Second Digit): Represents the second number.
- Band 3 (Multiplier): Tells you how many zeros to add to the first two numbers.
- Band 4 (Tolerance): Tells you how accurate the resistor is.
Example Calculation:
Let’s say you have a resistor with the colors: Brown - Black - Red - Gold.
- Brown = 1
- Black = 0
- Red (Multiplier) = Add two zeros (x 100)
- Gold (Tolerance) = ± 5%
Combine the first two numbers to get 10. Then multiply by the red band (100).
10 x 100 = 1000 ohms (or 1kΩ) with a 5% tolerance.
How to Read 5-Band Resistor Color Code
High-precision resistors often use five bands instead of four. The concept is exactly the same, they just add one extra digit for better accuracy.
- Band 1 (First Digit)
- Band 2 (Second Digit)
- Band 3 (Third Digit)
- Band 4 (Multiplier): Number of zeros to add.
- Band 5 (Tolerance): Accuracy.
Example Calculation:
Let's say the colors are: Blue - Gray - Black - Brown - Brown.
- Blue = 6
- Gray = 8
- Black = 0
- Brown (Multiplier) = Add one zero (x 10)
- Brown (Tolerance) = ± 1%
Combine the first three numbers to get 680. Add one zero to get 6800 ohms (or 6.8kΩ) with a 1% tolerance.
(If you are wondering, "blue is what number on the resistor color code?" The answer is always 6!)
How to Remember Resistor Color Code
You don't need to carry a chart around with you all the time. Engineering students all over the world use a simple mnemonic memory trick to remember the order of the colors.
The order from 0 to 9 is:
Black (0), Brown (1), Red (2), Orange (3), Yellow (4), Green (5), Blue (6), Violet (7), Gray (8), White (9).
The Mnemonic Trick:
Just remember this phrase:
"B.B. ROY of Great Britain has a Very Good Wife"*
Here is how it matches up:
- B - Black (0)
- B - Brown (1)
- R - Red (2)
- O - Orange (3)
- Y - Yellow (4)
- Great - Green (5)
- Britain - Blue (6)
- Very - Violet (7)
- Good - Gray (8)
- Wife - White (9)
If you can remember that single sentence, you will never forget how to find a resistor value again!
Summary
Learning how to calculate the color code of a resistor is a rite of passage for every electronics enthusiast. Here is a quick recap:
- Always put the Gold or Silver tolerance band on the right.
- Read the digit bands first, then apply the multiplier band.
- Use the "B.B. ROY" trick to easily remember the number values.
- When in absolute doubt, you can always use a digital multimeter to measure the resistance directly!
Now that you know how to read them, it's time to start building circuits. Happy tinkering!
FAQs
1. What is resistor color code?
Resistor color code is a system of colored bands used to show a resistor’s value and tolerance.
2. How do I read resistor color code?
You read the resistor from the side opposite the tolerance band, usually with the gold or silver band placed on the right.
3. How many bands are on a resistor?
Most common resistors have 4 bands or 5 bands, depending on their precision.
4. How do I calculate a 4-band resistor?
In a 4-band resistor, the first two bands are digits, the third band is the multiplier, and the fourth band is the tolerance.
5. How do I calculate a 5-band resistor?
In a 5-band resistor, the first three bands are digits, the fourth band is the multiplier, and the fifth band is the tolerance.
6. What number is blue in resistor color code?
Blue represents the number 6 in the standard resistor color code system.
7. Why do resistors use color bands instead of numbers?
Resistors are very small, so color bands are easier to print and read than tiny numeric text.
8. What does the gold band mean on a resistor?
A gold band usually shows tolerance, and in many common resistors it means plus or minus 5 percent.
9. How can I remember resistor color code easily?
A simple memory trick or mnemonic helps many beginners remember the color order faster.
10. What should I do if I cannot read the resistor colors clearly?
Use a digital multimeter to measure the resistor value directly, especially if the bands are faded or confusing.
