Smart Weather Station Project Combo | Arduino Nano + DHT11 + BMP280 + 16x2 LCD

Smart Weather Station Project Combo — Arduino Nano + DHT11 + BMP280 + 16x2 LCD

Build your own Smart Weather Station with this all-in-one project combo from Xsortex HUB. This kit gives you everything you need to measure temperature, humidity, and atmospheric pressure in real time — and display the live readings on a 16x2 LCD screen.

Whether you’re a student working on a college project, a hobbyist exploring IoT sensing, or a maker building a home environment monitor, this combo is the fastest way to get a fully functional weather station up and running with Arduino.

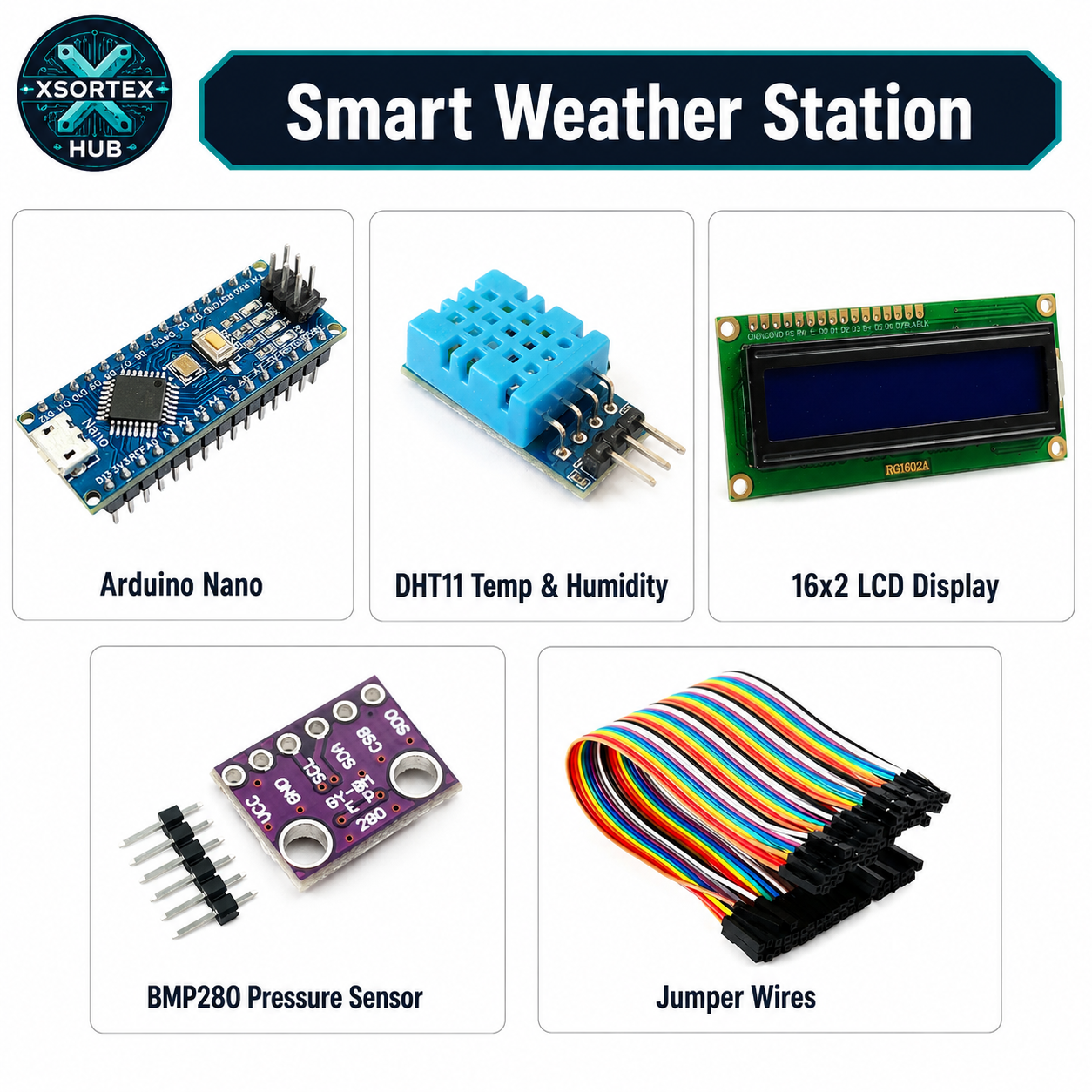

What’s Included in This Combo?

• 1× Arduino Nano — ATmega328P, 5V, 14 digital I/O, 8 analog inputs, Mini-USB / Type-C
• 1× DHT11 Temperature & Humidity Sensor — 0–50°C temp range, 20–90% RH humidity, digital output

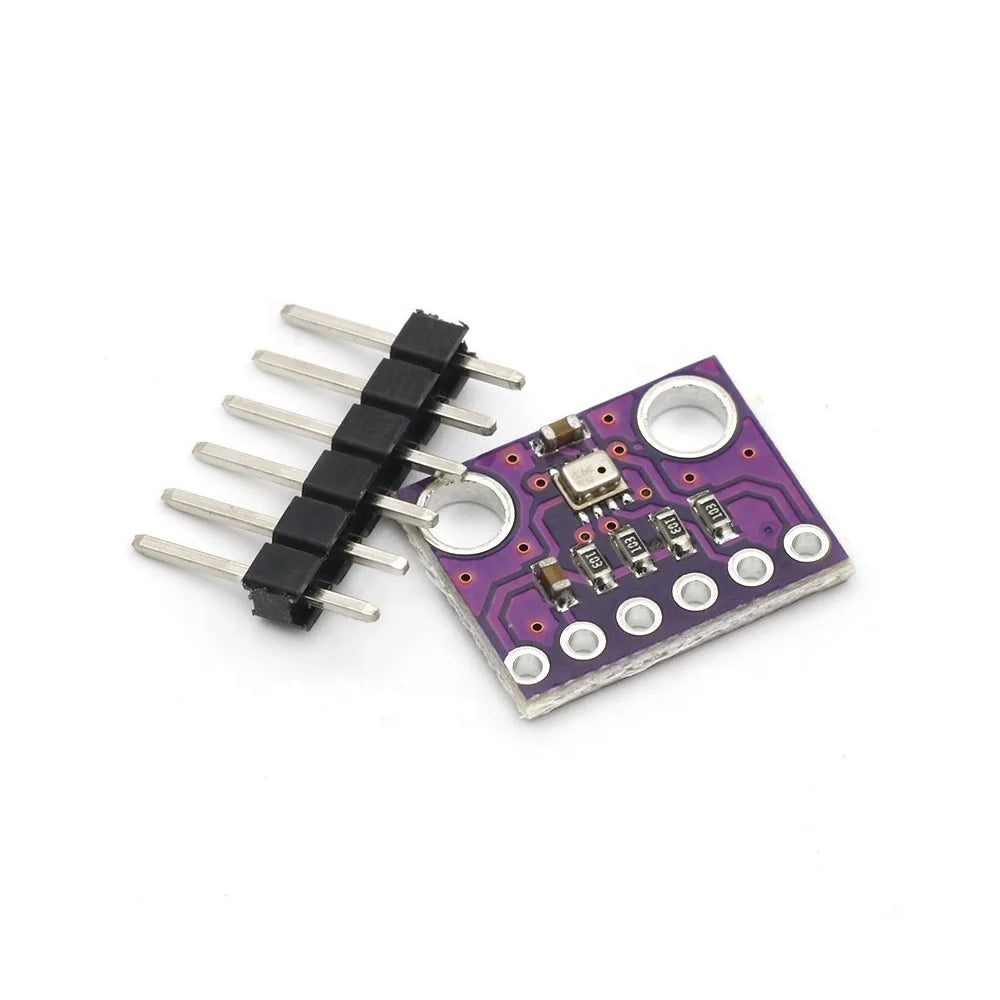

• 1× BMP280 Barometric Pressure Sensor — 300–1100 hPa range, I2C/SPI interface, altitude estimation
• 1× 16x2 LCD Display — HD44780 controller, blue backlight, 5V, 16 columns × 2 rows

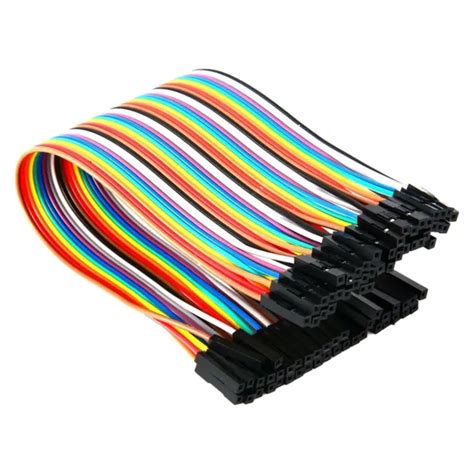

• Jumper Wires — female-female

What You Can Measure & Display

• 🌡️ Temperature — via DHT11 (0–50°C, ±2°C accuracy)
• 💧 Humidity — via DHT11 (20–90% RH, ±5% accuracy)
• 🌍 Atmospheric Pressure — via BMP280 (300–1100 hPa, ±1 hPa accuracy)
• ⛰️ Altitude Estimation — calculated from BMP280 pressure readings

Key Specifications

• Microcontroller: Arduino Nano (ATmega328P)
• Sensors: DHT11 (Temp & Humidity) + BMP280 (Pressure & Altitude)
• Display: 16x2 LCD (HD44780, blue backlight)
• Interface: DHT11 — Digital pin; BMP280 — I2C (SDA/SCL); LCD — 4-bit parallel
• Power: 5V via USB from Arduino Nano
• Programming: Arduino IDE with DHT, Adafruit BMP280, and LiquidCrystal libraries

Use Cases

• Home weather monitoring station
• Indoor air quality and comfort monitoring
• Greenhouse and plant environment tracking
• Engineering college project and STEM demonstration
• IoT weather data logging with serial output

Order now from Xsortex HUB and get fast delivery across India. All components are tested for compatibility and ready to wire up.
