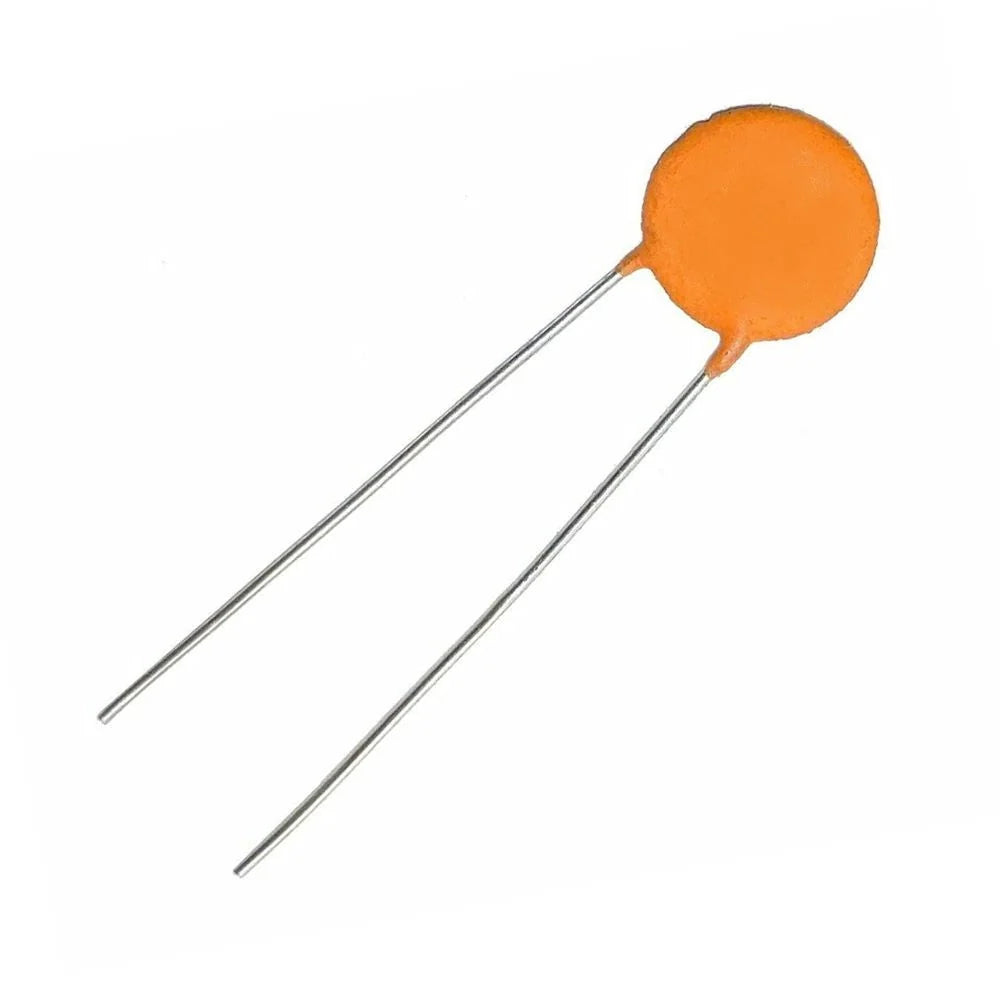

100nF (104) 50V Ceramic Disc Capacitor Radial Through Hole ±10%

100nF (104) 50V Ceramic Disc Capacitor – Radial Through Hole, ±10%

The 100nF (marked 104) Ceramic Disc Capacitor is arguably the most commonly used bypass capacitor in electronics. Rated at 50V with ±10% tolerance, it excels at suppressing high-frequency noise on power supply lines and is a standard decoupling component placed near every IC in a well-designed circuit.

Key Specifications

• Capacitance: 100nF (0.1µF, marked "104")
• Voltage Rating: 50V DC
• Tolerance: ±10%
• Type: Ceramic Disc, Non-Polarized
• Mounting: Radial Through Hole
• Dielectric: Class II (Y5V/Z5U typical)
• Lead Pitch: 5mm standard

Compatibility & Use Cases

This is the go-to bypass capacitor for Arduino, ESP32, NodeMCU, and virtually every digital IC. Common applications include:

• Power supply decoupling on every IC VCC pin
• High-frequency noise filtering on 3.3V and 5V rails
• RC timing networks in LM555 and oscillator circuits
• EMI suppression in motor and relay switching circuits
• Crystal oscillator stabilization circuits

Non-polarized and orientation-independent — simply place one as close as possible to each IC’s power pin for best results.
