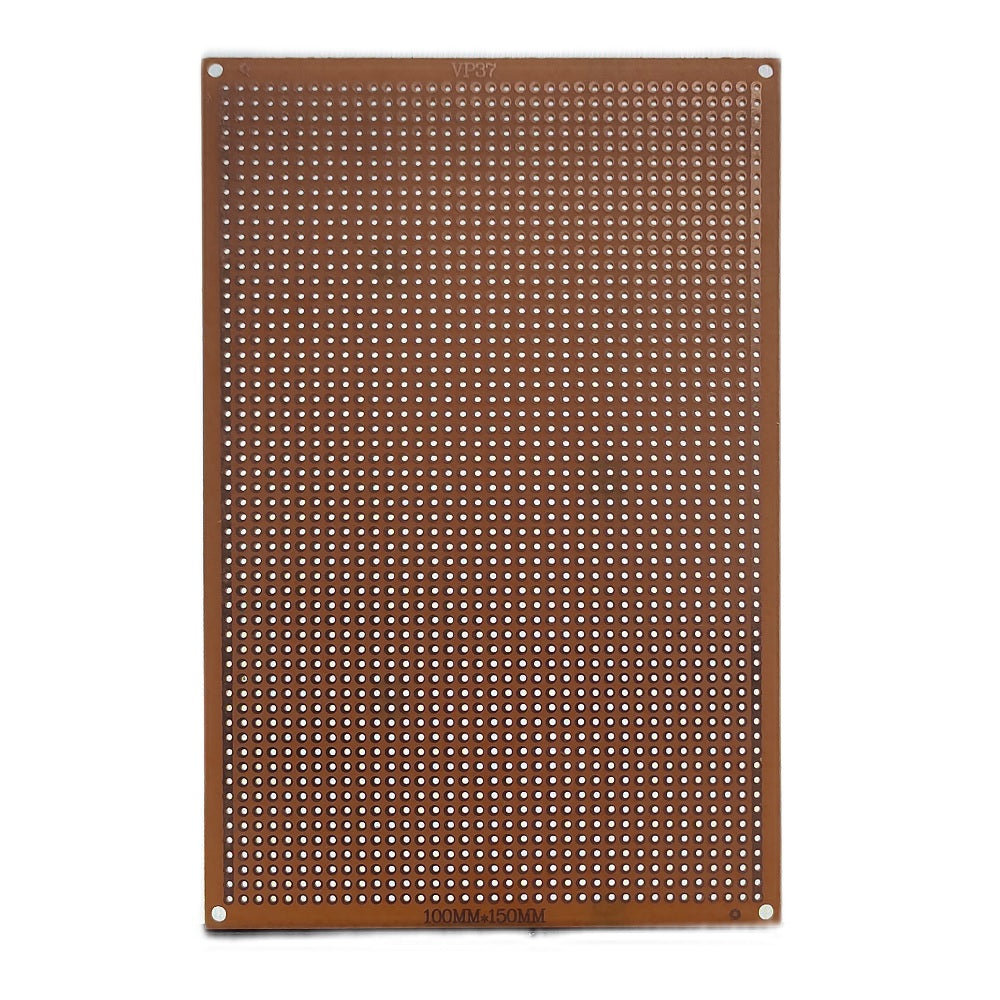

General Purpose PCB DM3656 Single Sided 150×100mm Prototype Board

General Purpose PCB DM3656 – Single Sided 150×100mm Prototype Board

The DM3656 General Purpose Prototype PCB is a single-sided, through-hole perfboard designed for building and testing custom circuits without the need for custom PCB fabrication. At 150×100mm, it offers ample space for complex circuit layouts while remaining compact enough for enclosure mounting.

Key Specifications

• Model: DM3656
• Dimensions: 150mm × 100mm
• Type: Single-sided (copper on one side)
• Hole Pitch: 2.54mm (0.1") standard
• Material: FR4 fiberglass substrate
• Copper Thickness: 35μm
• Hole Diameter: 1mm

Compatibility & Use Cases

This perfboard is compatible with all standard through-hole components and works seamlessly with Arduino, ESP32, NodeMCU, and other development board ecosystems. Ideal for:

• Permanent circuit assembly after breadboard prototyping
• Custom sensor interface and breakout boards
• IoT node enclosure builds with soldered connections
• Power supply and voltage regulator circuits
• STEM and engineering student project boards

The FR4 substrate ensures excellent mechanical strength and thermal stability, making it suitable for both lab and field deployments.

Order now from Xsortex HUB and get fast delivery across India.
