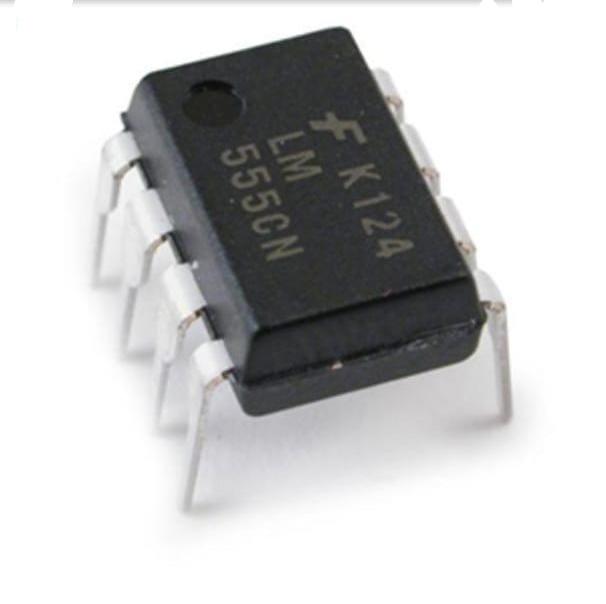

LM555 Timer IC – DIP-8 Precision Timer & Oscillator (Through Hole)

The LM555 Timer IC is one of the most iconic and versatile integrated circuits in electronics history. Available in a standard DIP-8 package, it can be configured as a monostable, astable, or bistable multivibrator, making it the backbone of countless timing, oscillation, and pulse-generation circuits.

Key Specifications

• Package: DIP-8 (Through Hole)
• Supply Voltage: 4.5V to 16V
• Output Current: Up to 200mA (source/sink)
• Timing Range: Microseconds to hours
• Operating Temperature: 0°C to +70°C
• Frequency Range: DC to 500 kHz
• Duty Cycle: Adjustable from 1% to 99%

Compatibility & Use Cases

The LM555 integrates easily into circuits alongside Arduino, ESP32, and other microcontrollers as an external clock or trigger source. Common applications include:

• PWM signal generation for motor speed control
• LED flasher and blinker circuits
• Tone and frequency generators for audio projects
• Debounce circuits for mechanical switches
• Delay timers and one-shot pulse generators
• IoT sensor sampling and wake-up trigger circuits

A must-have IC for every electronics kit, from beginners to seasoned engineers.

Order now from Xsortex HUB and get fast delivery across India.
